LUBRICATION SYSTEM LOCATION INDEX [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

id0111u3800100

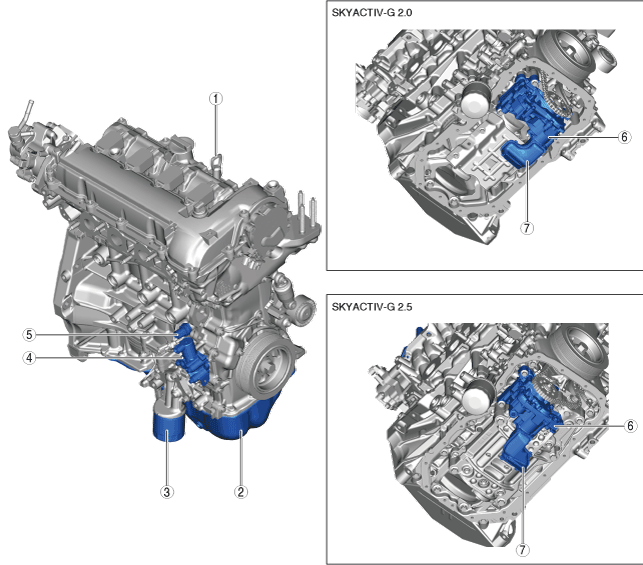

am3zzw00029054

1	Dipstick (See ENGINE OIL LEVEL INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See ENGINE OIL REPLACEMENT [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
2	Oil pan (See OIL PAN REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
3	Oil filter (See OIL FILTER REPLACEMENT [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
4	Engine oil solenoid valve (See ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See ENGINE OIL SOLENOID VALVE INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
5	Engine oil temperature sensor/engine oil pressure sensor (See OIL PRESSURE INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
6	Oil pump component (See OIL PUMP REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
7	Oil strainer (See OIL PUMP REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
