•  Depending on the engine operation conditions, the engine coolant flow volume is adjusted by opening/closing the coolant control valve.

•  At cold engine start, engine warming has been achieved by keeping the coolant switching valve fully closed and stopping the engine coolant flow.

•  The coolant switching valve is located near the water pump pulley.

atsuzn00000851

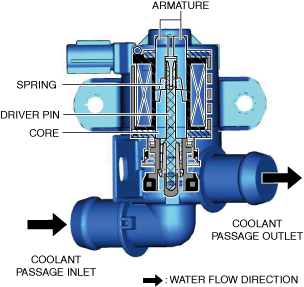

•  The coolant switching valve consists of the following parts.

am3zzn00010070

•  The engine coolant passage is switched according to changes in the engine coolant temperature. For details, refer to the [WATER FLOW CONTROL]. (See WATER FLOW CONTROL [SKYACTIV-X 2.0].)

am3zzn00010137

•  The PCM indicates the coolant switching valve according to the warning condition.

am3zzn00010135
