ELECTRIC WATER PUMP [SKYACTIV-D 1.8]

id0112t1004000

Purpose, Function

• The electric water pump adjusts the cooling performance of the charge air cooler.

Construction

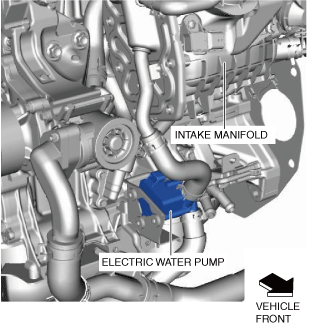

• The electric water pump is located underneath the intake manifold.

atsuzn00000016

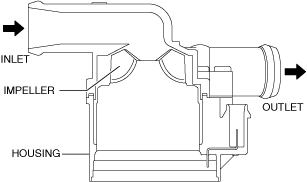

• The electric water pump consists of the housing and impeller.

am2zzn00003222

Operation

• The electric water pump is driven by the control signal sent from the PCM to maintain an appropriate intake air temperature.

am3zzn00009398

• For the electric water pump control, refer to the CONTROL SYSTEM.
