COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-D 1.8]

id0112t1801000

1.  Remove the hose and coolant reserve tank cap as a single unit.

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

am3zzw00029916

1	Bracket
2	Coolant reserve tank (See Coolant Reserve Tank Installation Note.)

Coolant Reserve Tank Installation Note

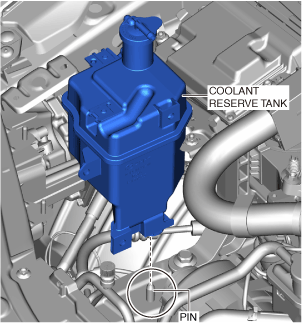

1.  Insert a rubber mount in the pin of the frame.

am3zzw00029915
