COOLING SYSTEM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

id0112u3002800


Outline

•  An engine coolant control valve has been adopted to improve fuel economy during low engine loads.

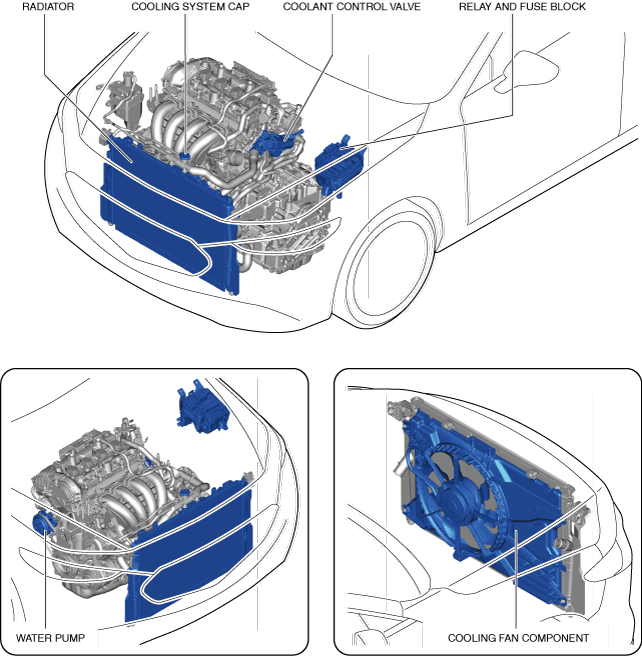

Structural View

am3zzn00006747

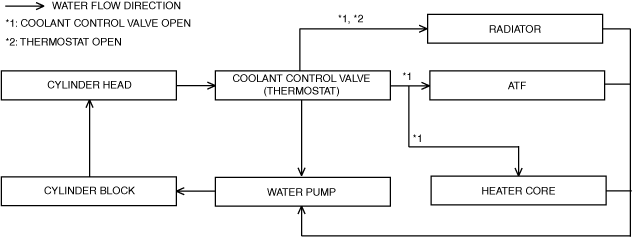

Flow Chart

ac5wzn00004595

Structure

•  Consists of the following parts:

Part name

Reference
Radiator
―
Cooling system cap
―
Water pump
―
Coolant control valve
(See COOLANT CONTROL VALVE [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Cooling fan component
―
Cooling fan relay
―
