COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

id0112u3801000

1.  Remove the hose and coolant reserve tank cap as a single unit.

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

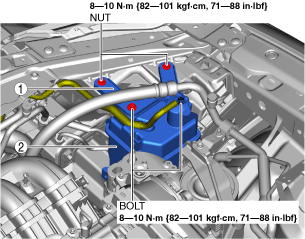

am3zzw00024378

1	Bracket
2	Coolant reserve tank (See Coolant Reserve Tank Installation Note.)

Coolant Reserve Tank Installation Note

1.  Insert a rubber mount in the pin of the frame.

am3zzw00024379
