WATER-COOLED CHARGE AIR COOLER [SKYACTIV-X 2.0]
id0113hf709600
Purpose, Function
• The water-cooled charge air cooler cools the intake air which is compressed and heated by the supercharger to increase the intake air density.
Construction

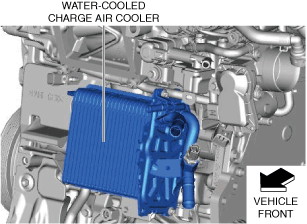

• The water-cooled charge air cooler is located in the intake manifold.

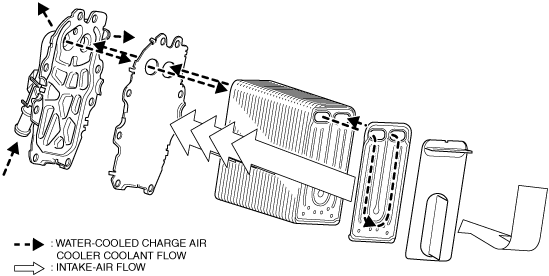

• Changed by the supercharger and cools the high-temperature intake air by passing it though the core area.
