•  The supercharger supplies the forcibly sent air to the engine by transmitting the crankshaft drive force to the pulley via the belt and rotating the inside rotor.

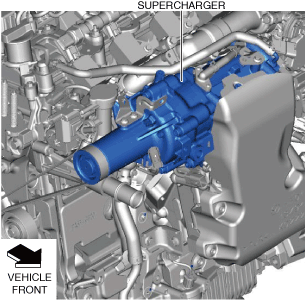

•  The supercharger is located on the front side of the engine compartment.

am3zzn00010078

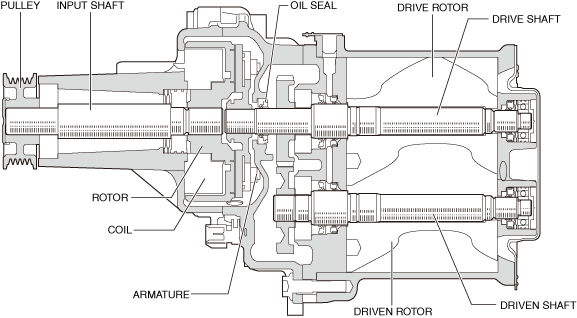

•  The supercharger consists of the following parts.

atsuzn00001032

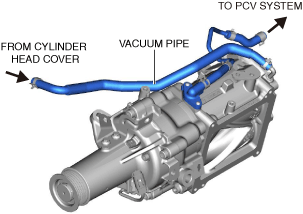

•  The supercharger performs the lubrication and ventilation inside the supercharger using the accumulated unburnt gas in the cylinder head cover.

am3zzn00010079

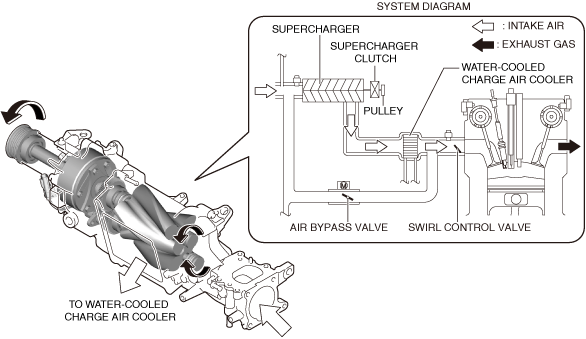

•  If current flows from the PCM to the supercharger clutch, the clutch operates, the rotation of the pulley is transmitted to the rotor, and boost starts.

am3zzn00010282
