INTAKE-AIR SYSTEM [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))]

id0113u1003300

Intake-air System

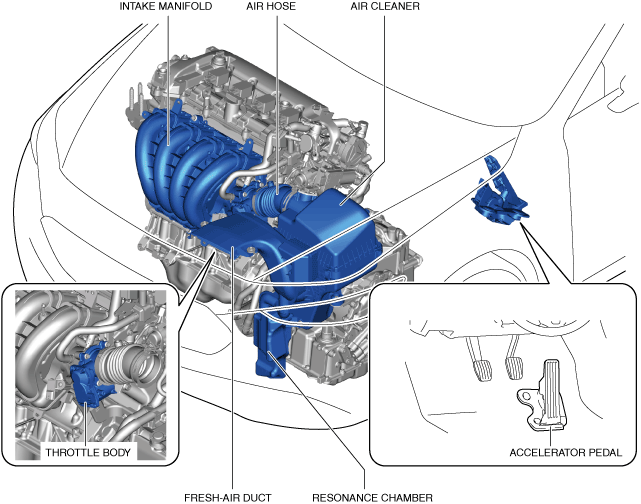

Structural view

am3zzn00007150

System diagram

ac5uun00003849

Structure

•  The intake air system consists of the following parts:

Part name	Reference
Fresh-air duct	(See Fresh-air Duct.)
Resonance chamber	(See Resonance Chamber.)
Air cleaner	―
Throttle body	(See THROTTLE BODY [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
Intake manifold	―
Accelerator pedal	(See ACCELERATOR PEDAL, KICKDOWN SWITCH [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

Fresh-air Duct

Purpose, function

•  Brings in fresh air from outside the engine compartment.

•  Increases air density by taking fresh air, which is cooler than the engine compartment, to enhance the charging efficiency, ensuring combustion stability.

Construction

•  The fresh-air duct is installed to the air cleaner.

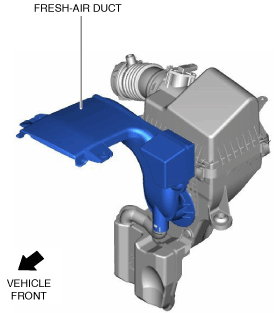

SKYACTIV-G 1.5

atsuzn00000638

SKYACTIV-G 2.0, SKYACTIV-G 2.5

am3zzn00006675

Resonance Chamber

Purpose, function

•  Pulsation of intake air is controlled and intake air noise is reduced by adding an intake air passage.

Construction

•  The resonance chamber is installed to the fresh-air duct.

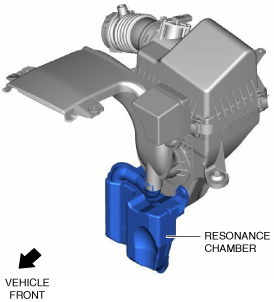

SKYACTIV-G 1.5

atsuzn00000639

SKYACTIV-G 2.0, SKYACTIV-G 2.5

am3zzn00007172
