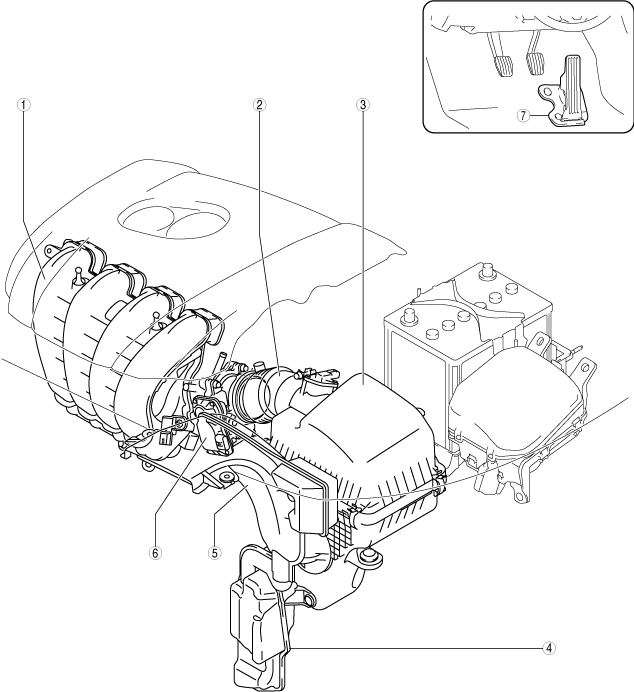

INTAKE-AIR SYSTEM LOCATION INDEX [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))]

id0113u1801700

am3zzw00021173

1	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See INTAKE MANIFOLD VACUUM INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
2	Air hose (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
3	Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See AIR CLEANER ELEMENT REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See AIR CLEANER ELEMENT INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
4	Resonance chamber (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
5	Fresh-air duct (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
6	Throttle body (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].) (See THROTTLE BODY INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
7	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
