•  Opens/closes the throttle valve to adjust the amount of air supplied to the cylinder.

•  Opens/closes the throttle valve according to the control signal from the PCM.

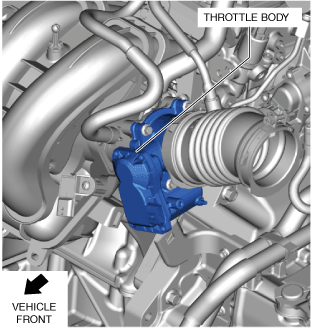

•  The throttle body is installed to the intake manifold.

am3zzn00007173

•  The throttle body consists of a throttle valve, throttle valve actuator, TP sensor, and return spring.

am3zzn00006678

•  For the TP sensor, refer to CONTROL SYSTEM. (See THROTTLE POSITION (TP) SENSOR [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)

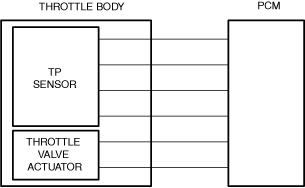

•  The throttle valve actuator opens/closes the throttle valve according to the control signal from the PCM. If there is a malfunction in the throttle valve actuator, the throttle valve opening angle is fixed by the return spring force in the throttle body.

ac5wzn00001279

•  For the drive-by-wire control, refer to CONTROL SYSTEM. (See DRIVE-BY-WIRE CONTROL [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
