FUEL INJECTOR [SKYACTIV-X 2.0]

id0114hf108200

Purpose, Function

• Promotes atomization of fuel by injecting it from the multiple holes.

• Injects fuel according to the control signal from the PCM.

Construction

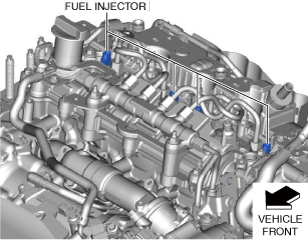

• The fuel injector is installed to the cylinder head.

atsuzn00000862

• The fuel injector has multiple injection holes in area A shown in the figure.

atsuzn00000805

Operation

• Injects fuel according to the signal from the PCM. The fuel injection time is determined by the energization time of the coil.

atsuzn00000839

• For fuel injection control details, refer to CONTROL SYSTEM. (See FUEL INJECTION CONTROL SYSTEM [SKYACTIV-X 2.0].)
