FUEL SYSTEM [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))]

id0114u1002600


Outline

•  A multiple hole type fuel injector has been adopted which provides higher fuel injection accuracy for improved fuel efficiency and output.
•  Piston movement-compression by the 4-head cam inside the high pressure fuel pump heightens the fuel pressure, achieving improved fuel efficiency and output.
•  A brushless motor has been adopted in the fuel pump unit for improved fuel economy. Using the brushless motor, the fuel pump function is improved and a stabilized fuel supply is achieved.

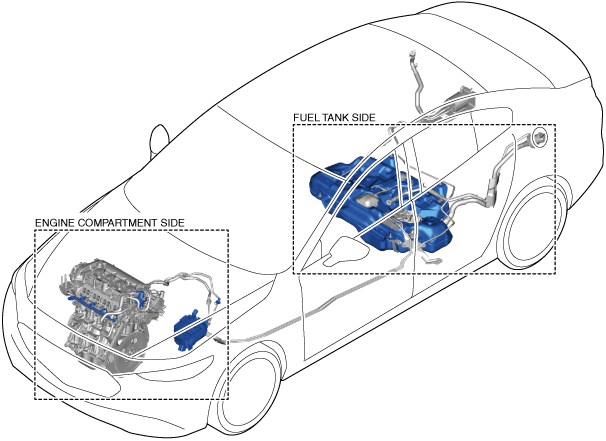

Structural View

am3zzn00007151

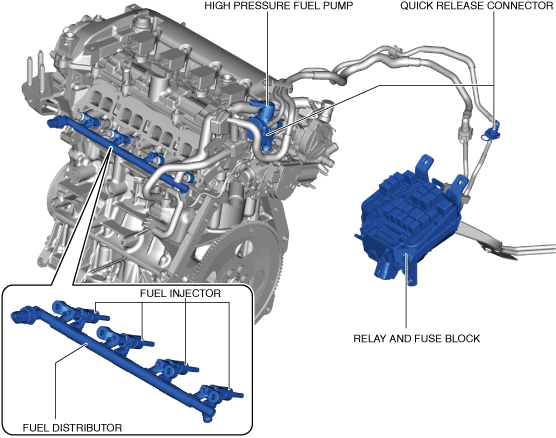

Engine compartment side

am3zzn00007152

Fuel tank side

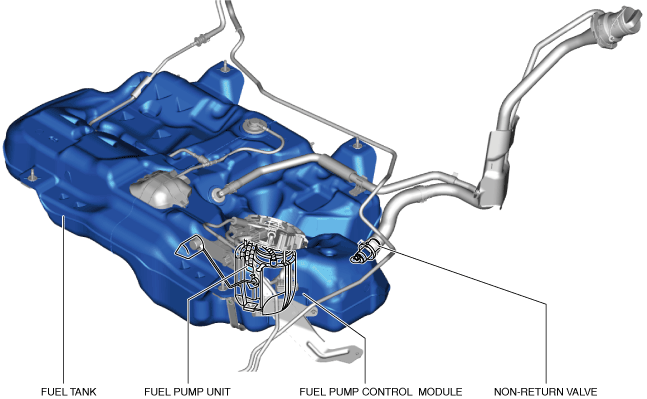

Except Chinese specs.

am3zzn00007153

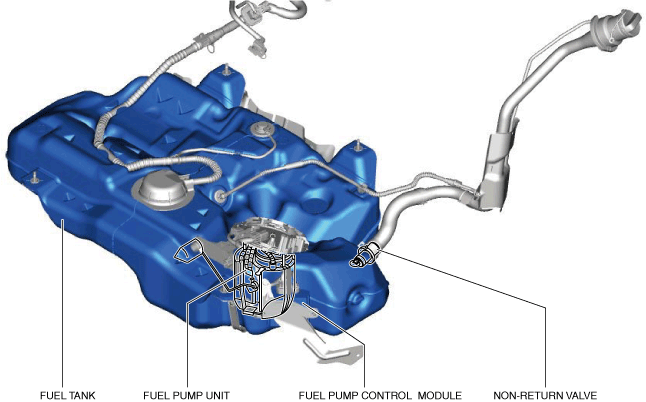

Chinese specs.

am3zzn00010001

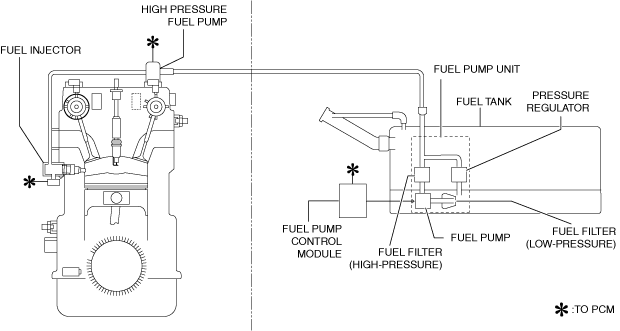

System Diagram

am3zzn00009401

Structure

•  The fuel system consists of the following parts:

Part/System name

Reference
Return-less fuel system
Fuel pump unit
(See RETURNLESS FUEL SYSTEM [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
Direct fuel injection system
(See DIRECT FUEL INJECTION SYSTEM [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
High pressure fuel pump
(See HIGH PRESSURE FUEL PUMP [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
Fuel distributor
(See FUEL DISTRIBUTOR [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
Fuel injector
(See FUEL INJECTOR [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
Fuel tank
(See FUEL TANK [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
Non-return valve
(See FUEL TANK [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
Fuel pump relay
―
Sub relay
―
Fuel pump control module
(See FUEL PUMP CONTROL MODULE [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
Quick connector (fuel system)
―


Specification

Item

Specification
Fuel injector
Type
High resistance
Fuel supply method
Top-feed
Drive types
Electronic
Pressure regulator control pressure
(kPa {kgf/cm2, psi})
Approx. 500 {5.10, 72.5}
Fuel pump type
Electric
Fuel tank capacity
(L {US gal, Imp gal})
Except Chinese specs.
•  51.0 {13.5, 11.2}
Chinese specs.
•  50.0 {13.2, 11.0}

Fuel type

Fuel

Research Octane Number

Country
Premium unleaded fuel (Conforming to EN 228 and within E10)
95 or above
Armenia, Azerbaijan, Belarus, Canary Islands, F.Guiana, Georgia, Guadeloupe, Kazakhstan, Martinique, Mongolia, Morocco, New Caledonia, Reunion, Russia, Turkey, Ukraine, Tahiti, Vanuatu, Lebanon, Algeria, Libya, Tunisia, Madagascar, Guatemala, Honduras, Nicaragua, Aruba, St. Martin, Uruguay, Taiwan, Bolivia, UAE, Singapore, Hong Kong, Malaysia, Brunei, Macau, South Africa, Namibia, Botswana, Swaziland, Lesoto, Mauritius, Seychelles, Bermuda, Jamaica, Barbados, Grenada, St Lucia, St Vincent, Antigua, Surinam, Trinidad and Tobago, Uruguay
Premium unleaded fuel (within E85)
Thailand
Regular unleaded fuel (Conforming to Fuel Quality Standards Act 2000)
92 or above
Myanmar, Egypt
90 or above
Australia, New zealand, The Philippines, Cambodia, Laos, Marshall Islands, Ustt, Syria, Jordan, Cameroon, Ivory Coast, Nigeria, Angola, Burundi, Gabon, Ghana, El Salvador, Costa Rica, Haiti, Dominican Republic (LHD), Panama, B.Virgin, Curacao, Ecuador, Colombia, Chile, Peru, Iran, Israel, Kuwait, Oman, Qatar, Saudi arabia, Bahrain, Irao, Indonesia, Nepal, Sri Lanka, Fiji, Papua New Guinea, Kenya, Zimbabwe, Tanzania, Mozambique, Trinidad and Tobago, Commonwealth of Dominica, Ecuador, Colombia
