FUEL TANK [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

id0114u3104100

Fuel Tank

Purpose, function

•  Store fuel safely and supply fuel to the engine.

Construction

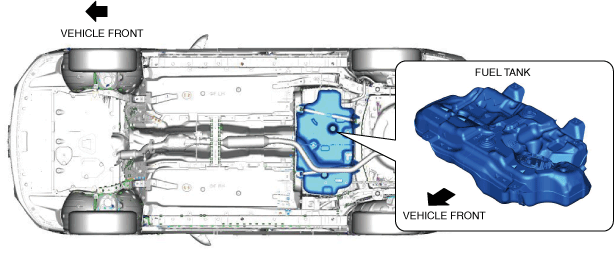

•  The fuel tank is installed below the rear seat.

am3zzn00006682

•  The fuel tank is made of plastic.

•  The following parts are integrated in the fuel tank.

―  Non-return valve

(See Non-return Valve.)

―  Rollover valve

(See EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)

am3zzn00007176

Non-return Valve

Purpose, function

•  Assures safety by preventing fuel from returning to the fuel filler opening.

Construction

•  The non-return valve cannot be removed as it is installed inside the fuel tank.

atsuzn00000650

•  A single valve type has been adopted for the non-return valve.

am2zzn00003279

Operation

•  Normally, the valve is closed as shown by the dotted line in the figure. When refueling, it opens as shown by the solid line due to the force caused by the flow of fuel. When refueling is finished, the valve returns to the normal valve position by spring force.

am2zzn00003280
