FUEL INJECTOR [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

id0114u3108200


Purpose, Function

•  Promotes atomization of fuel by injecting it from the multiple holes.
•  Injects fuel according to the control signal from the PCM.

Construction

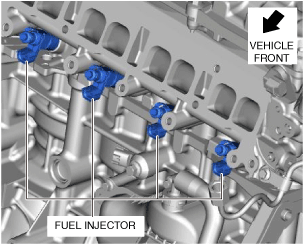

•  The fuel injector is installed to the cylinder head.
am3zzn00006687
•  The fuel injector has multiple injection holes in area A shown in the figure.
ac5wzn00002230

Operation

•  Injects fuel according to the signal from the PCM. The fuel injection time is determined by the energization time of the coil.
ac5wzn00002231
•  For fuel injection control details, refer to CONTROL SYSTEM. (See FUEL INJECTION CONTROL SYSTEM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
