•  For the exhaust manifold, the port is located in the exhaust manifold to assure the length of the port and achieve the compact layout.

am3zzn00010251

•  Excellent catalytic converter warming and quick regeneration performance have been achieved by locating the exhaust manifold near the area behind the engine.

•   The exhaust manifold is installed to the rear of the engine.

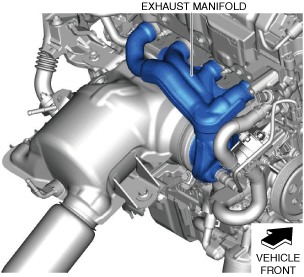

am3zzn00010252

•  The exhaust manifold is integrated with the catalytic converter (WU-TWC) and the gasoline particulate filter.
