EXHAUST SYSTEM [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))]

id0115u1125800

Outline

• A high compression ratio has been achieved by adopting 4-2-1 exhaust pipes and reducing residual gas in the cylinders.

• The loop structure of the exhaust pipes for the 4-2-1 system takes up less space.

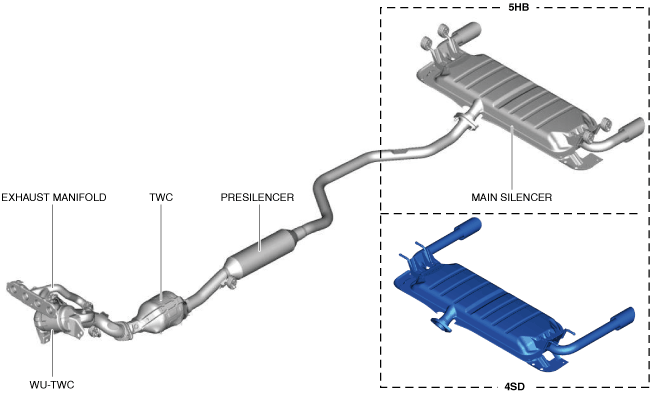

Structural View

am3zzn00010056

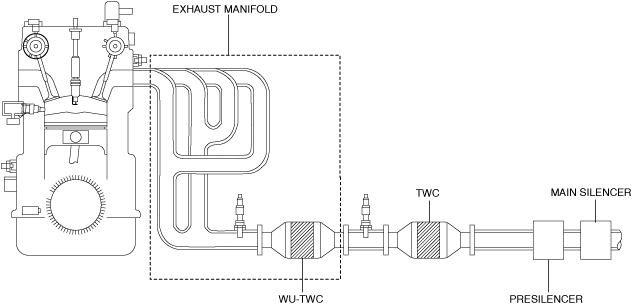

System Diagram

am3zzn00007177

Structure

• The exhaust system consists of the following parts:

Part name	Reference
Main silencer	―
Presilencer	―
TWC	(See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
WU-TWC
Exhaust manifold	(See EXHAUST MANIFOLD [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
