EXHAUST SYSTEM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

id0115u3125800

Outline

• An exhaust shutter valve has been adopted to suppress booming noise during cylinder deactivation.

Structural View

am3zzn00010057

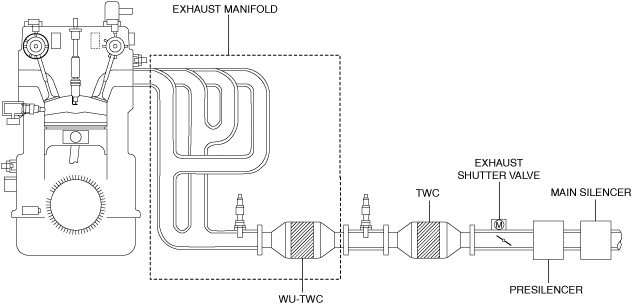

System Diagram

am3zzn00006692

Structure

• The exhaust system consists of the following parts:

Part name	Reference
Main silencer	―
Presilencer	―
TWC	(See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
WU-TWC
Exhaust manifold	(See EXHAUST MANIFOLD [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Exhaust shutter valve	(See EXHAUST SHUTTER VALVE [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
