CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-X 2.0 (E)]

id0116hf0964h1

1.  Remove the main silencer. (See MAIN SILENCER REMOVAL/INSTALLATION [SKYACTIV-X 2.0])

2.  Remove the insulator (rear). (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0])

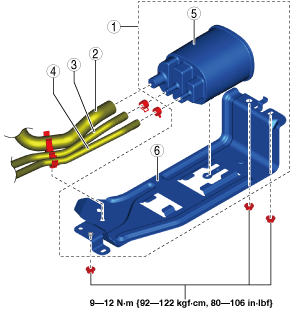

3.  Remove in the order indicated in the table.

am3zzw00031345

1	Charcoal canister component (See Charcoal Canister Component Installation Note)
2	Evaporative hose No.1 (See Evaporative Hose Installation Note)
3	Evaporative hose No.2 (See Evaporative Hose Installation Note)
4	Evaporative hose No.3 (See Evaporative Hose Installation Note)
5	Charcoal canister (See Charcoal Canister Removal Note)
6	Charcoal canister bracket

4.  Install in the reverse order of removal.

Charcoal Canister Removal Note

1.  Remove the charcoal canister and charcoal canister bracket as a single unit.

2.  Release the lock as shown in the figure.

am3zzw00021206

3.  Remove the charcoal canister.

Evaporative Hose Installation Note

1.  Install the evaporative hose as shown in the figure.

am3zzw00024030

Charcoal Canister Component Installation Note

1.  Install the charcoal canister bracket hook into the hole on the body.

am3zzw00022991

2.  Temporarily tighten nut A.

3.  Temporarily tighten nuts B.

4.  Completely tighten nut A.

5.  Completely tighten nuts B.
