EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-X 2.0]

id0116hf113400

Exhaust Gas Purification System

Purpose, outline

•  Purifies contaminants in the exhaust gas by utilizing chemical reactions.

System diagram

am3zzn00010345

Structure

•  The exhaust gas purification system consists of the following parts:

Part name	Reference
Catalytic Converter (TWC)	(See Catalytic Converter (TWC).)
Catalytic Converter (Gasoline particulate filter)	(See Catalytic Converter (Gasoline Particulate Filter).)

Catalytic Converter (TWC)

Purpose, function

•  The catalytic converter purifies contaminants in the exhaust gas by utilizing the chemical reactions of the three-way catalytic converter.

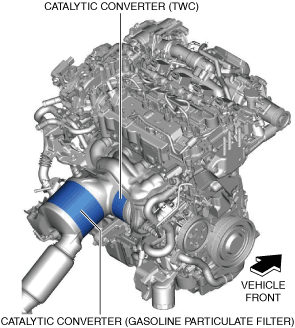

Construction

•  The catalytic converter is located behind the engine.

atsuzn00000848

Operation

•  Contaminants in the exhaust gas (HC, CO, NOx) are purified by oxidization and deoxidization while they are passing through the catalytic converter.

―  Oxidization process

•  Noxious hydrocarbon (HC) and carbon monoxide (CO) are bound with oxygen and converted to non-noxious carbon dioxide and water.

O₂+HC+CO→CO₂+H₂O

―  Deoxidization process

•  Noxious nitrogen oxide (NOx) is converted to non-noxious nitrogen and oxygen. A part of the oxygen generated in this process is used in the oxidization process.

NOx→N₂+O₂

Catalytic Converter (Gasoline Particulate Filter)

Purpose, function

•  The Gasoline particulate filter collects particulate matter (PM) in the exhaust gas and eliminates the PM from the exhaust gas.Gasoline particulate filter is a cordierite honey-comb type filter. The filter ends are blocked alternately and small holes are arranged on the wall inside the filter, PM is collected, and the accumulated PM is burnt and eliminated while the vehicle is driven.

Construction

•  The gasoline particulate filter is integrated inside the catalytic converter (gasoline particulate filter).

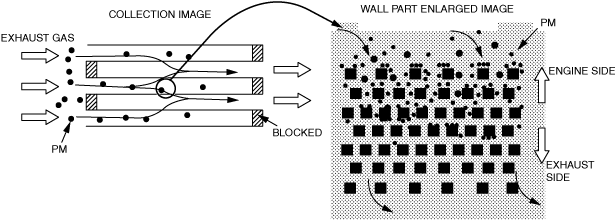

Operation

•  Gasoline particulate filter is a cordierite honey-comb type filter. The filter ends are blocked alternately and small holes are arranged on the wall inside the filter, PM is collected, and the accumulated PM is burnt and eliminated while the vehicle is driven.

am3zzn00010072
