EMISSION SYSTEM LOCATION INDEX [SKYACTIV-D 1.8]

id0116q9803700

Engine Compartment Side

am3zzw00028780

1	HP-EGR control valve (See HP-EGR CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See HP-EGR CONTROL VALVE INSPECTION [SKYACTIV-D 1.8].)
2	Intake shutter valve (See INTAKE SHUTTER VALVE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See INTAKE SHUTTER VALVE INSPECTION [SKYACTIV-D 1.8].)
3	EGR pipe (See EGR PIPE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

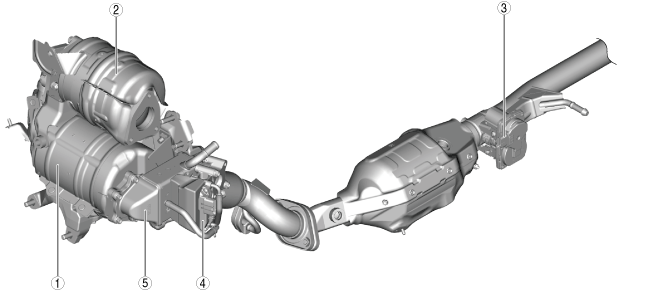

Exhaust System Side

am3zzw00028781

1	Catalytic Converter (DPF) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
2	Catalytic Converter (oxidation catalyst/NOx strage catalyst) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
3	Exhaust shutter valve (See EXHAUST SHUTTER VALVE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See EXHAUST SHUTTER VALVE INSPECTION [SKYACTIV-D 1.8].)
4	LP-EGR control valve (See LP-EGR CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See LP-EGR CONTROL VALVE INSPECTION [SKYACTIV-D 1.8].)
5	EGR cooler (See EGR COOLER REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See EGR COOLER INSPECTION [SKYACTIV-D 1.8].)

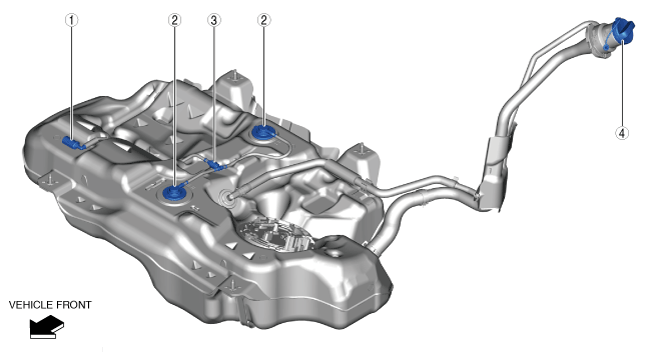

Fuel Tank Side

am3zzw00028782

1	Evaporative chamber (See EVAPORATIVE CHAMBER REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See EVAPORATIVE CHAMBER INSPECTION [SKYACTIV-D 1.8].)
2	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See ROLLOVER VALVE INSPECTION [SKYACTIV-D 1.8].)
3	Check valve (See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See CHECK VALVE INSPECTION [SKYACTIV-D 1.8].)
4	Fuel-filler cap (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
