EMISSION SYSTEM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

id0116u3110100


Outline

•  A single-nano catalyst has been adopted for the under-floor, three-way catalyst to improve emission gas purification efficiency.

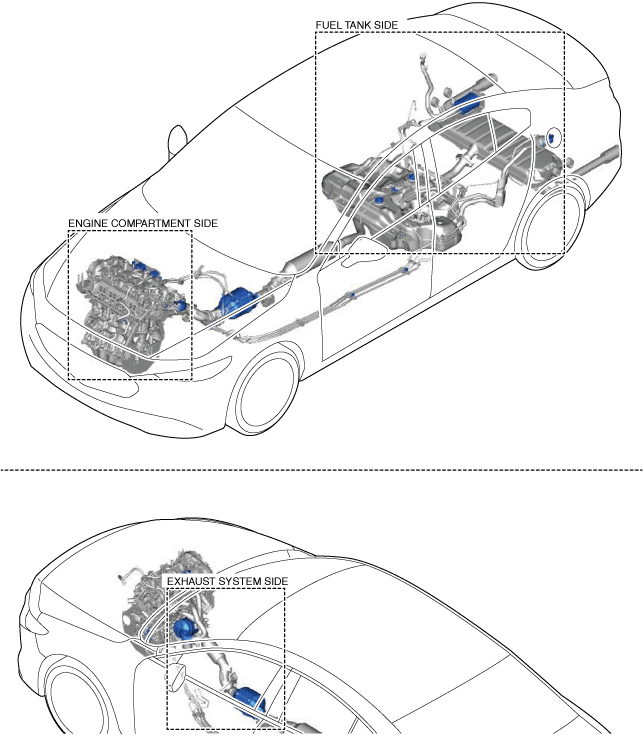

Structural View

atsuzn00000646

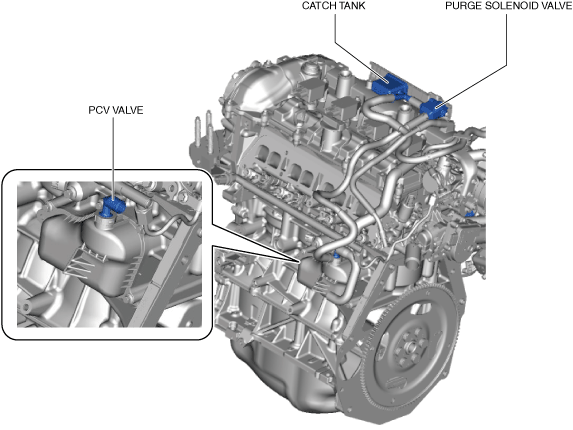

Engine compartment side

am3zzn00006744

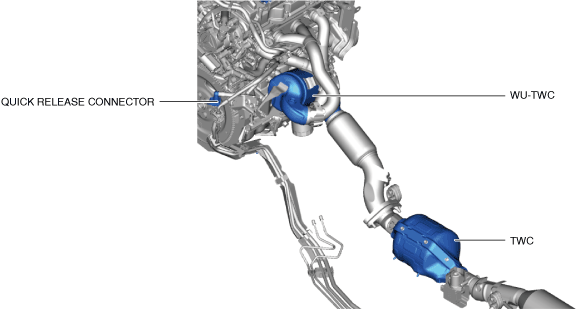

Exhaust system side

am3zzn00006745

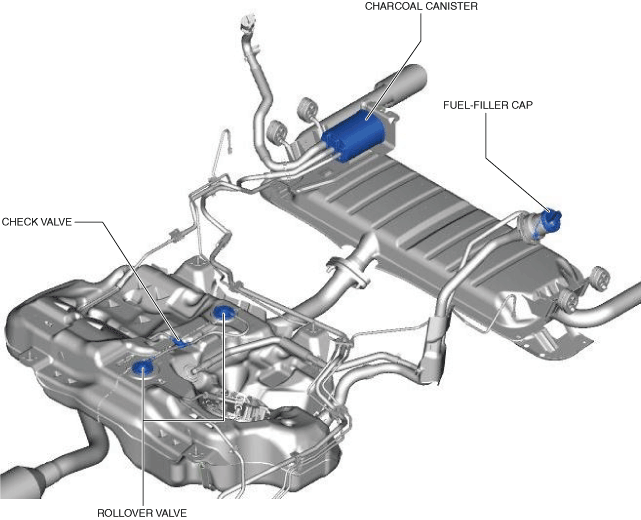

Fuel tank side

atsuzn00000647

System Diagram

am3zzn00009317

Structure

•  The emission system consists of the following parts:

Part/System name

Reference
Exhaust gas purification system
Catalytic converter
(See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Positive crankcase ventilation system
PCV valve
(See POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Evaporative emission control system
Purge solenoid valve
(See EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Catch tank
Charcoal canister
Rollover valve
Check valve
Fuel-filler cap
―
Quick release connector (emission system)
―


Specification

Item

Specification
Catalyst form
WU-TWC (monolith)
TWC (monolith)
EVAP control system
Charcoal canister type
PCV system
Closed type
