EMISSION SYSTEM LOCATION INDEX [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

id0116u3803700

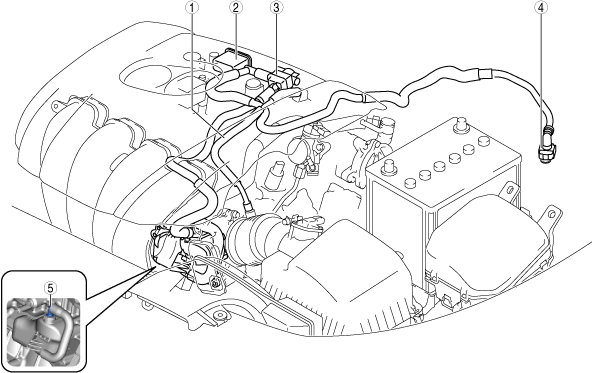

Engine Compartment Side

am3zzw00021299

1
Ventilation hose
(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
2
Catch tank
(See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
(See CATCH TANK INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
3
Purge solenoid valve
(See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
(See PURGE SOLENOID VALVE INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
4
Quick release connector
(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
5
PCV valve
(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)

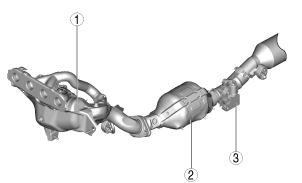

Exhaust System Side

am3zzw00021300

1
WU-TWC
(See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
2
TWC
(See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
3
Exhaust shutter valve
(See EXHAUST SHUTTER VALVE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
(See EXHAUST SHUTTER VALVE INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)


Fuel Tank Side

am3zzw00028887

1
Rollover valve
(See ROLLOVER VALVE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
(See ROLLOVER VALVE INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
2
Check valve
(See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
(See CHECK VALVE INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
3
charcoal canister
(See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
(See CHARCOAL CANISTER INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
4
Fuel-filler cap
(See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
5
Quick release connector
(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
