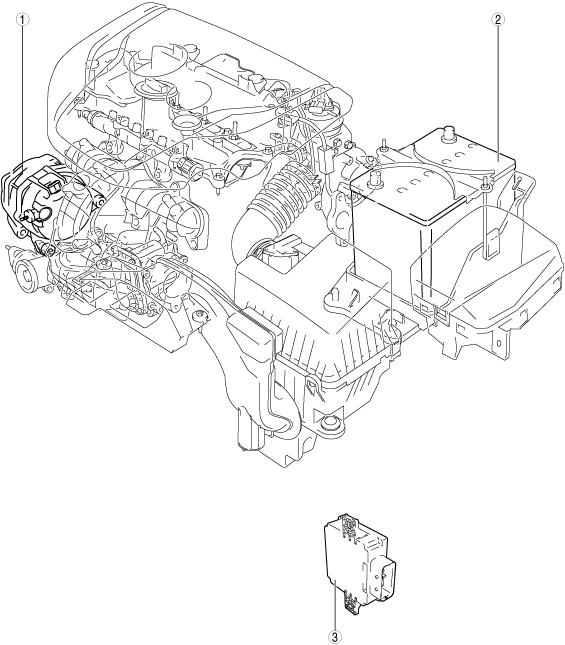

CHARGING SYSTEM LOCATION INDEX [SKYACTIV-D 1.8]

id0117008001r6

ac3wzw00000719

1	Generator (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See GENERATOR INSPECTION [SKYACTIV-D 1.8].) (See GENERATOR DISASSEMBLY/ASSEMBLY [SKYACTIV-D 1.8].)
2	Battery (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See BATTERY INSPECTION [(E)].) (See BATTERY RECHARGING [(E)].) (See BATTERY CONDITION INITIALIZATION SETTING (i-stop SETTING).)
3	DC-DC converter (See DC-DC CONVERTER REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See DC-DC CONVERTER INSPECTION [SKYACTIV-D 1.8].)
