GENERATOR DISASSEMBLY/ASSEMBLY [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))]

id0117008004v1

Caution

•  Vehicle specifications differ depending on the vehicle identification number (VIN).

Applied VIN type A:

―  JM0 BP2****# 100001—200000

―  3MZ BP2****# 100001—200000

―  JM4 BP5****# 100001—300000

―  JM6 BP2****# 100001—150000

―  JM7 BP2****# 100001—200000

―  JM7 BPA****# 100001—200000

―  JMZ BP5****# 100001—300000

―  JMZ BP6****# 100001—300000

―  MM8 BP2****# 100001—200000

Applied VIN type B:

―  JM0 BP2****# 200001—

―  3MZ BP2****# 200001—

―  JM4 BP5****# 300001—

―  JM6 BP2****# 150001—

―  JM7 BP2****# 200001—

―  JM7 BPA****# 200001—

―  JMZ BP5****# 300001—

―  JMZ BP6****# 300001—

―  MM8 BP2****# 200001—

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

Applied VIN type A:

SKYACTIV-G 2.0 (MTX), SKYACTIV-G 2.5

am3zzw00034380

1	Terminal B component
2	Rear cover
3	Brush holder
4	Regulator assy
5	Generator

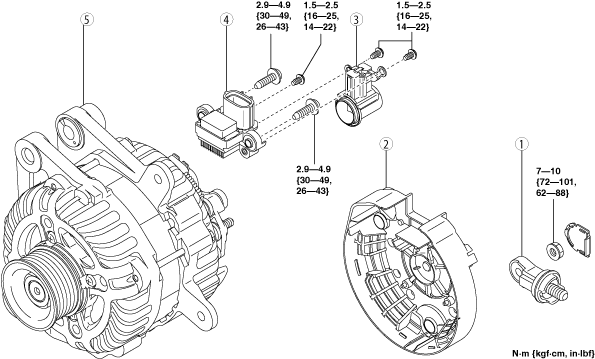

SKYACTIV-G 1.5, SKYACTIV-G 2.0 (ATX)

am3zzw00034381

1	Terminal B component
2	Rear cover
3	Brush holder
4	Regulator assy
5	Generator

Applied VIN type B:

SKYACTIV-G 2.0 (MTX)

am3zzw00038585

1	Rotor component
2	Stator coil component
3	Pulley (See Pulley Disassembly/Assembly Note.)
4	Rotor
5	Front bearing
6	Rear bearing
7	Front cover
8	Stator assy
9	Rectifier assy
10	Regulator assy
11	Brush set (See Brush set Disassembly Note.) (See Brush set Assembly Note.)
12	Cover.R
13	Terminal assy.B

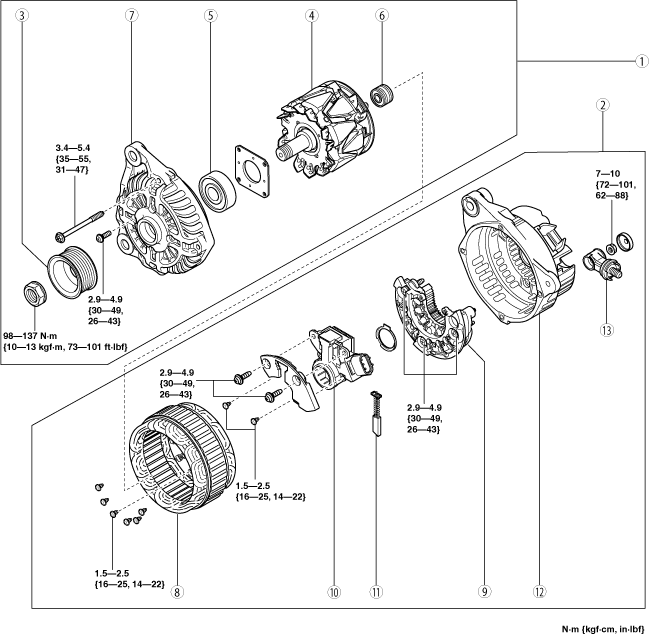

SKYACTIV-G 1.5, SKYACTIV-G 2.0 (ATX), SKYACTIV-G 2.5

am3zzw00038492

1	Rotor component
2	Stator coil component
3	Pulley (See Pulley Disassembly/Assembly Note.)
4	Rotor
5	Front bearing
6	Rear bearing
7	Front cover
8	Stator assy
9	Rectifier assy
10	Regulator assy
11	Brush set (See Brush set Disassembly Note.) (See Brush set Assembly Note.)
12	Cover.R
13	Terminal assy.B

Pulley Disassembly/Assembly Note

1.  Disassemble/assemble the pulley using the SST.

am3uuw00006095

Brush set Disassembly Note

Caution

•  Melt the solder quickly, otherwise the diodes (rectifier) and brush holder will be damaged by excessive heat.

am2zzw00013282

1.  Melt the solder and remove the brush from the brush holder.

Brush set Assembly Note

Caution

•  Melt the solder quickly, otherwise the diodes (rectifier) and brush holder will be damaged by excessive heat.

am2zzw00013282

1.  Press the brush into the brush holder with it facing in the direction shown in the figure.

am2zzw00013283

2.  Solder the brush to the brush holder.
