STARTING SYSTEM [SKYACTIV-D 1.8]
id0119s8105200
Outline
• A coaxial reduction type starter has been adopted.
• For starter cut-off control details, refer to CONTROL SYSTEM (See
STARTER CUT-OFF CONTROL [SKYACTIV-D 1.8]
.)

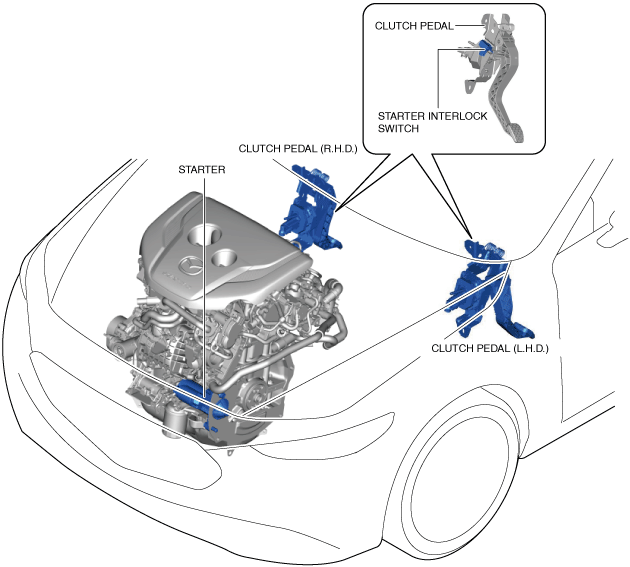

Structural View
am3zzn00009539
Structure
Starter interlock switch (MTX)
(See
STARTER INTERLOCK SWITCH [SKYACTIV-D 1.8]
.)
