STARTING SYSTEM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

id0119u3105200


Outline

•  A coaxial reduction type starter has been adopted.
•  For starter cut-off control details, refer to CONTROL SYSTEM (See STARTER CUT-OFF CONTROL [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)

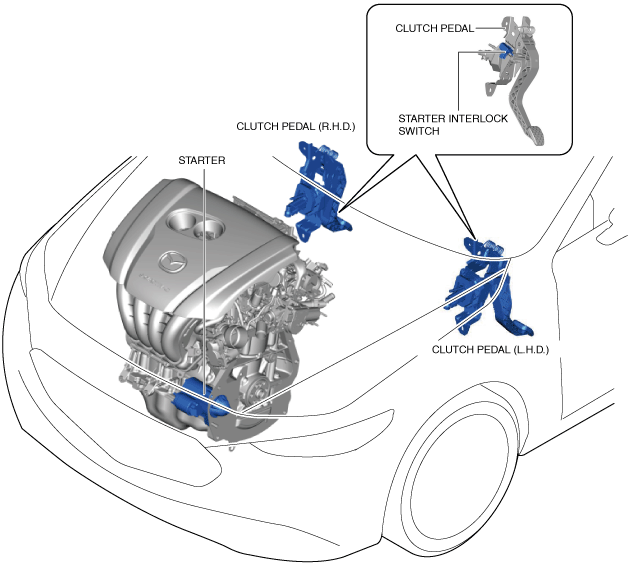

Structural View

am3zzn00009540

Structure

Starter interlock switch (MTX)
(See STARTER INTERLOCK SWITCH [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
