FUEL PUMP CONTROL [SKYACTIV-X 2.0]
id0140hf004100
Outline

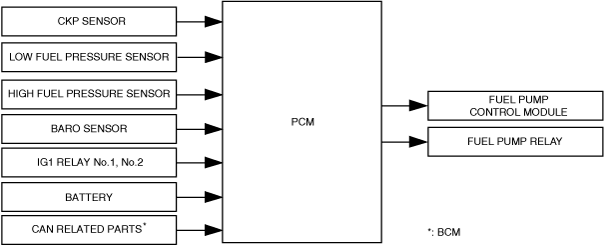

Block Diagram
am3zzn00010143
|
Operation
Fuel pump relay
Relay ON/OFF |
Control conditions |
---|---|
ON
|
• When any of the following conditions is met:
|
OFF
|
• When engine is stopped (excludes engine stop by i-stop control)
• Collision signal from SAS control module is received
|
Fuel pump control module
Output duty ratio |
Control conditions |
---|---|
95%
|
• When any of the following conditions is met:
|
10—90%
|
• Except for control conditions with output duty ratio of 5% or 95%
|
5%
|
• When engine is stopped by i-stop control
|
Fuel pump operation circuit diagram
am3zzn00008261
|
