MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR [SKYACTIV-X 2.0]


id0140hf006800


Purpose/Function

•  Detects the intake air pressure in front of the supercharger.
•  Detects the intake air pressure introduced into the cylinder and sends it to the PCM as an intake air pressure signal.

Construction

•  Installed on the intake manifold.

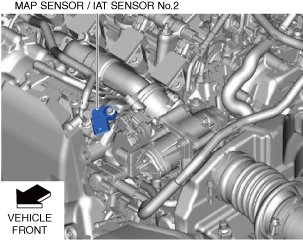

atsuzn00000884
•  A piezoresistance has been adopted as the detecting element for detecting the intake air pressure.
•  IAT sensor No.2 is integrated.
am3zzn00009660

Operation

•  Sends the signal, which fluctuates according to the intake air pressure, to the PCM.
atsuzn00000957

MAP sensor characteristic

ac5wzn00002402
