MASS AIR FLOW (MAF) SENSOR [SKYACTIV-X 2.0]


id0140hf007000


Purpose/Function

•  Detects the intake airflow amount introduced into the cylinder as basic information for mainly determining the fuel injection amount.
•  Detects the intake airflow amount introduced into the cylinder and sends it to the PCM as an intake airflow amount signal.

Construction

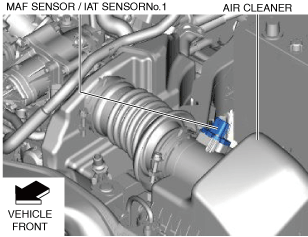

•  Installed on the air cleaner.
atsuzn00000885
•  A silicon element has been adopted as the detecting element for detecting the intake airflow amount.
•  IAT sensor No.1 is integrated.
am3zzn00009657

Operation

•  Sends a signal to the PCM via SENT communication which fluctuates according to the intake airflow amount.
atsuzn00000819
