•  The rotation speed of the manual transmission clutch disc is used for calculations as mainly basic information for the vehicle body damping control.

•  Detects the secondary 2nd gear rotation speed which is constantly synchronized with the clutch disc rotation and inputs it to the PCM as a signal.

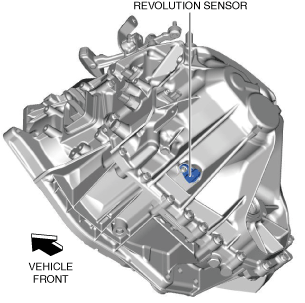

•  The revolution sensor is located on the underside of the transmission.

atsuzn00000889

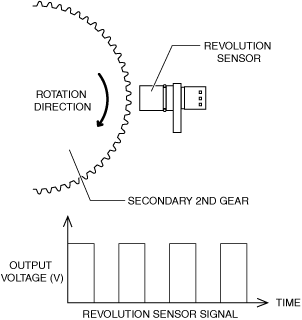

•  The revolution sensor has adopted a magnetic resistance (MR) element to the detection area.

•  The signal, which fluctuates according to the clutch disc rotation speed, is input to the PCM.

atsuzn00000818
