•  Detects the rotation speed of the supercharger rotor and inputs it to the PCM as a supercharger speed sensor signal.

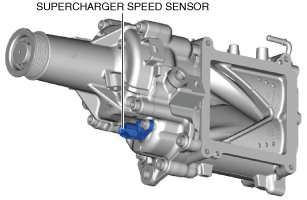

•  The supercharger speed sensor is installed to the supercharger.

am3zzn00010123

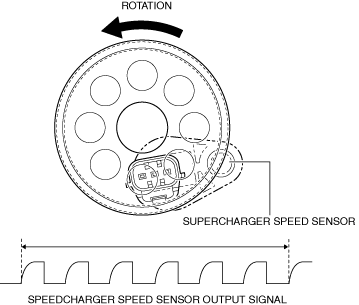

•  An MR (magnetic resistance) element has been adopted to the detection area of the supercharger position sensor to detect the rotation speed of the supercharger rotor.

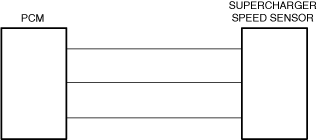

•  The signal, which fluctuates according to the rotation speed of the supercharger rotor, is input to the PCM.

am3zzn00010235
