•  Detects the actual air bypass valve opening angle as basic information for mainly boost control.

•  Detects the air bypass valve open/closed condition and inputs it to the PCM as an air bypass valve opening angle signal.

•  The air bypass valve position sensor is built into the air bypass valve.

am3zzn00010120

•  An electromagnetic induction action applied to a non-contact type has been adopted to the detection area of the air bypass valve position sensor.

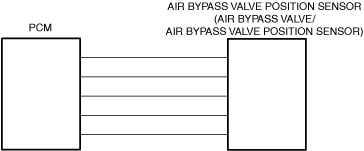

•  The signal, which fluctuates according to the air bypass valve open/closed condition, is input to the PCM.

atsuzn00000991
