LOW FUEL TEMPERATURE SENSOR [SKYACTIV-X 2.0]
id0140hf271000
Purpose/Function
• Detects the fuel temperature in the high pressure fuel pump as basic information for mainly fuel pump control.
Construction

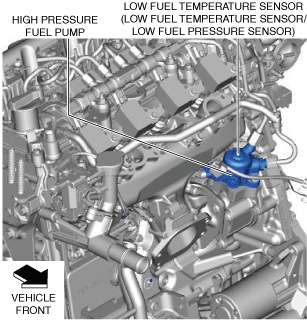

• The low fuel temperature sensor is located on the high pressure fuel pump.
• A thermistor has been adopted to the detection part of the low fuel temperature sensor.
Operation
• The low fuel pressure sensor sends the detected fuel pressure to the PCM as a low fuel pressure signal.
Low fuel temperature sensor characteristic
