EXHAUST SHUTTER VALVE POSITION SENSOR [SKYACTIV-X 2.0]
id0140hf433700
Purpose/Function
• Detects the exhaust shutter valve opening/closing condition and sends it to the PCM as the exhaust shutter valve opening angle signal.
Construction

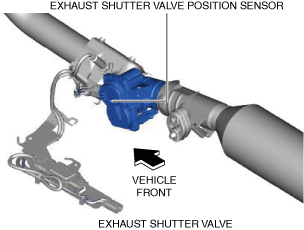

• Built into the exhaust shutter valve.
• A Hall element has been adopted (as the detecting element) for detecting the exhaust shutter valve opening/closing condition.
Operation

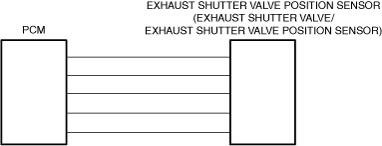

• Sends the signal, which fluctuates according to the exhaust shutter valve opening/closing, to the PCM.
Exhaust shutter valve position sensor characteristic
