•  Detects the fuel pressure in the fuel supply line as basic information for mainly determining the fuel injection amount.

•  Detects the fuel pressure in the fuel supply line and inputs it to the PCM as a fuel pressure signal.

•  Built into the fuel injector.

atsuzn00000212

•  A piezoelectric element has been adopted as the detecting element for detecting the fuel pressure.

•  Sends the signal, which fluctuates according to the fuel pressure, to the PCM.

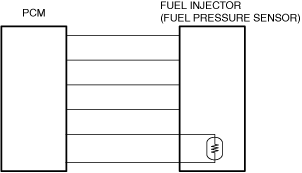

ac8wzn00000499

Fuel pressure sensor characteristic

ac5wzn00001606
