MASS AIR FLOW (MAF) SENSOR [SKYACTIV-D 1.8]
id0140s1007000
Purpose/Function
• Detects the intake airflow amount after it passes through the air cleaner as basic information for mainly determining the fuel injection amount.
• Detects the intake airflow amount after it passes through the air cleaner and sends to the PCM as an intake airflow amount signal.
Construction

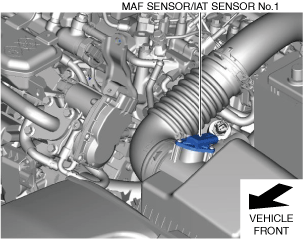

• Installed on the air cleaner.
• A hot film has been adopted as the detecting element for detecting the intake airflow amount.
• IAT sensor No.1 is integrated.
Operation
• Sends the signal, which fluctuates according to the intake airflow amount, to the PCM.
MAF sensor characteristic
