INTAKE AIR TEMPERATURE (IAT) SENSOR [SKYACTIV-D 1.8]

id0140s1007100

IAT Sensor No.1

Purpose/Function

•  Detects the IAT before it passes through the air cleaner as basic information for mainly determining the fuel injection amount.

•  Detects the IAT before it passes through the air cleaner and sends it to the PCM as an IAT signal.

Construction

•  Built into the MAF sensor.

am2zzn00003623

•  A thermistor has been adopted (as the detecting element) for detecting the IAT.

Operation

•  Sends the signal, which fluctuates according to the IAT (after passing through the air cleaner), to the PCM.

am2zzn00003624

IAT sensor No.1 characteristic

am2zzn00003625

IAT Sensor No.2

Purpose/Function

•  Detects the IAT (in intake manifold) as basic information for mainly determining the fuel injection amount.

•  Detects the IAT (in intake manifold) and sends it to the PCM as an IAT signal.

Construction

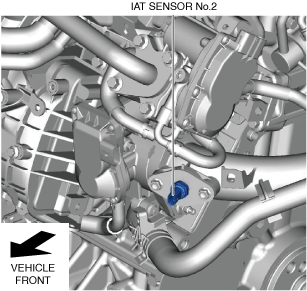

•  Installed on the turbocharger air outlet pipe.

atsuzn00000201

•  A thermistor has been adopted (as the detecting element) for detecting the IAT.

Operation

•  Sends the signal, which fluctuates according to the IAT (in the intake manifold), to the PCM.

ac3wzn00000769

IAT sensor No.2 characteristic

am2zzn00003628

IAT Sensor No.3

Purpose/Function

•  Detects the IAT (in intake manifold) as basic information for mainly determining the fuel injection amount.

•  Detects the IAT (in intake manifold) and sends it to the PCM as an IAT signal.

Construction

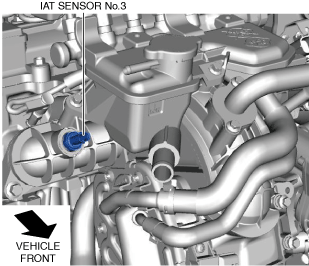

•  Installed on the intake manifold.

atsuzn00000202

•  A thermistor has been adopted (as the detecting element) for detecting the IAT.

Operation

•  Sends the signal, which fluctuates according to the IAT (in the intake manifold), to the PCM.

atsuzn00000087

IAT sensor No.3 characteristic

am2zzn00003628
