EGR TEMPERATURE SENSOR [SKYACTIV-D 1.8]
id0140s1010600
Purpose/Function
• The EGR temperature sensor detects the temperature of exhaust gas recirculating into the combustion chamber.
Construction

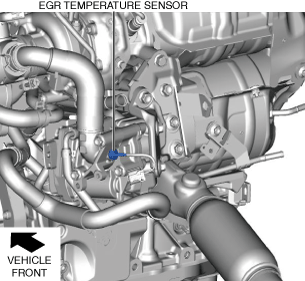

• The EGR temperature sensor is located at the rear of the engine compartment.
• For the EGR temperature sensor, a thermistor has been adopted to the detection area for detecting the temperature of exhaust gas recirculating into the combustion chamber.
Operation
• The EGR temperature sensor inputs the signal, which fluctuates according to the temperature of exhaust gas recirculating into the combustion chamber, to the PCM.

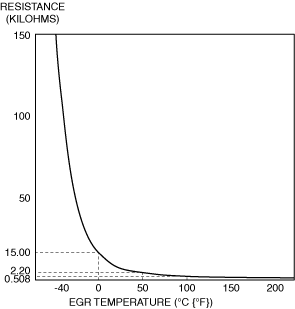

EGR temperature sensor characteristic
