•  Detects the IAT after it passes through the charge air cooler as basic information for mainly determining the diesel particulate filter regeneration control.

•  Detects the IAT after it passes through the charge air cooler and sends it to the PCM as an IAT signal.

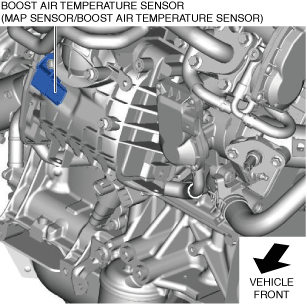

•  Installed on the intake manifold.

atsuzn00000217

•  A thermistor has been adopted (as the detecting element) for detecting the IAT.

•  The boost air temperature sensor is integrated with the MAP sensor.

•  Sends the signal, which fluctuates according to the IAT after passing through the charge air cooler, to the PCM.

ac3wzn00000784
