EXHAUST GAS TEMPERATURE SENSOR [SKYACTIV-D 1.8]

id0140s1256600

Exhaust Gas Temperature Sensor No.1

Purpose/Function

•  Detects the exhaust gas temperature before it passes through the variable geometry turbocharger as basic information for mainly determining the fuel injection amount, EGR control, and boost control.

•  Detects the exhaust gas temperature before it passes through the variable geometry turbocharger and sends the signal to the PCM as an exhaust gas temperature signal.

Construction

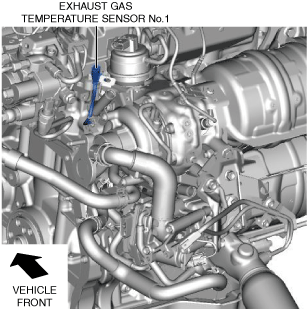

•  Installed in the variable geometry turbocharger.

atsuzn00000220

•  A thermistor has been adopted (as the detecting element) for detecting the exhaust gas temperature.

Operation

•  Sends the signal, which fluctuates according to the exhaust gas temperature before it passes through the variable geometry turbocharger, to the PCM.

ac3wzn00000787

Exhaust gas temperature sensor No.1 characteristic

am2zzn00003673

Exhaust Gas Temperature Sensor No.2

Purpose/Function

•  Detects the exhaust gas temperature before it passes through the catalytic converter as basic information for mainly determining the fuel injection amount and diesel particulate filter regeneration control.

•  Detects the exhaust gas temperature before it passes through the catalytic converter and sends it to the PCM as an exhaust gas temperature signal.

Construction

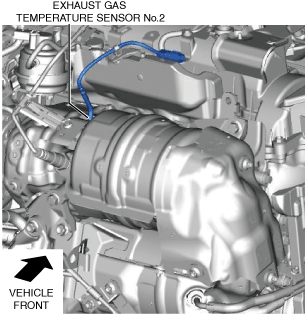

•  Installed on the catalytic converter.

atsuzn00000221

•  A thermistor has been adopted (as the detecting element) for detecting the exhaust gas temperature.

Operation

•  Sends the signal, which fluctuates according to the exhaust gas temperature before it passes through the catalytic converter, to the PCM.

ac3wzn00000789

Exhaust gas temperature sensor No.2 characteristic

am2zzn00003676

Exhaust Gas Temperature Sensor No.3

Purpose/Function

•  Detects the exhaust gas temperature after it passes through the catalytic converter as basic information for mainly diesel particulate filter regeneration control.

•  Detects the exhaust gas temperature after it passes through the catalytic converter and sends it to the PCM as an exhaust gas temperature signal.

Construction

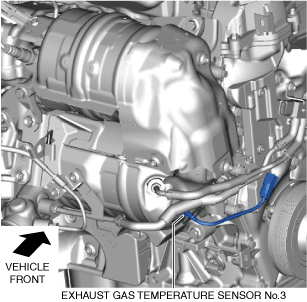

•  Installed on the catalytic converter.

atsuzn00000224

•  A thermistor has been adopted as the detecting element for detecting the exhaust gas temperature.

Operation

•  Sends the signal, which fluctuates according to the exhaust gas temperature after it passes through the catalytic converter, to the PCM.

ac3wzn00000791

Exhaust gas temperature sensor No.3 characteristic

am2zzn00003678

Exhaust Gas Temperature Sensor No.4

Purpose/Function

•  Detects the exhaust gas temperature before it passes through the EGR cooler as basic information for mainly diesel particulate filter regeneration control.

•  Detects the exhaust gas temperature before it passes through the EGR cooler and sends the signal to the PCM as an exhaust gas temperature signal.

Construction

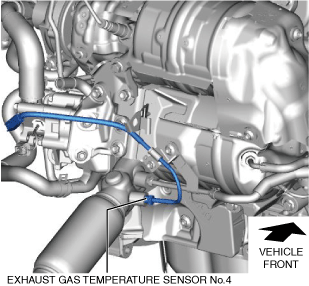

•  Installed on the rear side of the catalytic converter.

atsuzn00000223

•  A thermistor has been adopted (as the detecting element) for detecting the exhaust gas temperature.

Operation

•  Sends the signal, which fluctuates according to the exhaust gas temperature before it passes through the EGR cooler, to the PCM.

ac3wzn00000793

Exhaust gas temperature sensor No.4 characteristic

am2zzn00003681
