ENGINE OIL TEMPERATURE SENSOR [SKYACTIV-D 1.8]
id0140s1256900
Purpose/Function
• Detects the engine oil temperature as basic information for mainly diesel particulate filter regeneration control.
• Detects the engine oil temperature and sends it to the PCM as an engine oil temperature signal.
Construction

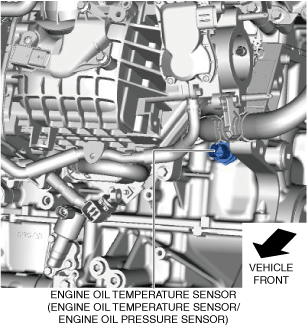

• Installed on the cylinder block.
• A thermistor has been adopted (as the detecting element) for detecting the engine oil temperature.
• The engine oil temperature sensor is integrated with the engine oil pressure sensor.
Operation
• Sends the signal, which fluctuates according to the engine oil temperature, to the PCM.
Engine oil temperature sensor characteristic
