BLOW-BY-HEATER [SKYACTIV-D 1.8]


id0140s1258800


Purpose/Function

•  Warms the inside of the ventilation pipe during extremely cold temperatures to prevent moisture in the blow-by gas from freezing.

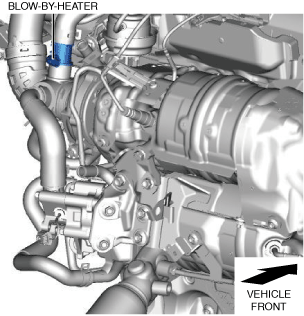

Construction

•  Installed on the ventilation pipe.
atsuzn00000216

Operation

•  When the battery voltage is supplied from the blow-by heater relay to the blow-by heater according to the signal from the PCM, it operates to warm the inside of the ventilation pipe.
am2zzn00003699
