•  The actuator position sensor detects the open/closed condition of the variable nozzle which drives the turbocharger actuator of the variable geometry turbocharger as basic information for mainly boost control.

•  The actuator position sensor detects the open/closed condition of the valve which drives the turbocharger actuator of the variable geometry turbocharger and sends the signal to the PCM as a turbocharger actuator opening angle signal.

•  The actuator position sensor of the variable geometry turbocharger is located on the turbocharger actuator.

atsuzn00000244

•  The actuator position sensor of the variable geometry turbocharger has adopted a Hall element to the detection area for detecting the open/closed condition of the valve which drives the turbocharger actuator of the variable geometry turbocharger.

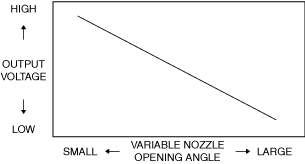

•  The signal, which changes according to the open/closed condition of the variable nozzle driving the turbocharger actuator of the variable geometry turbocharger, is sent to the PCM.

ac3wzn00000824
