FUEL INJECTION TIMING CONTROL [SKYACTIV-D 1.8]

id0140s1988000

Outline

• The PCM determines and controls the optimum fuel injection timing according to engine operation conditions based on the signals from each input sensor.

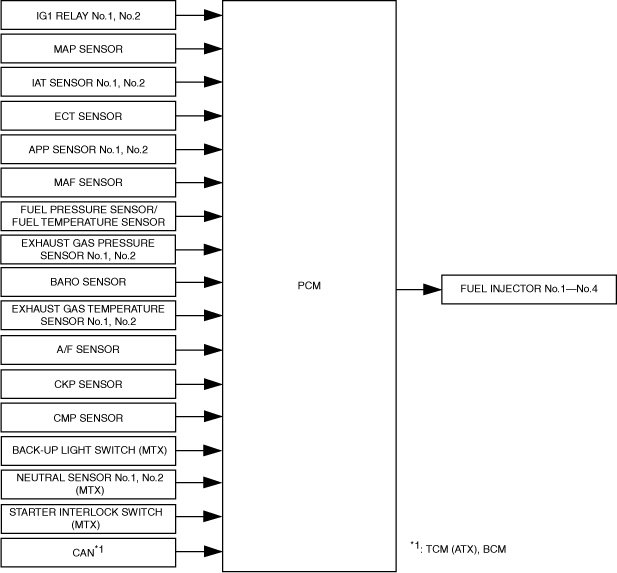

Block Diagram

atsuzn00000605

Operation

Determination of Fuel Injection Timing

• The PCM calculates the optimum fuel injection timing based on the predetermined target fuel injection timing and input signals from each sensor.

Target Fuel Injection Timing

• The basic target fuel injection timing is calculated based on the engine speed and fuel injection amount.

Injection Timing Correction

• The target fuel injection timing is corrected based on the input signal from each sensor, such as the intake air temperature, engine coolant temperature, or barometric pressure.
