CRANKSHAFT POSITION (CKP) SENSOR [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]
id0140u3006300
Purpose/Function
• Detects the crankshaft speed as basic information for mainly determining the fuel injection timing and ignition timing.
• Detects the crankshaft speed and sends it to the PCM as a CKP signal.
Construction
• Installed on the side of the cylinder block (right side).
• An MR (Magnetic Resistance) element has been adopted as the detecting element for detecting the crankshaft speed.
Operation
• Sends the signal, which fluctuates according to the crankshaft speed, to the PCM.

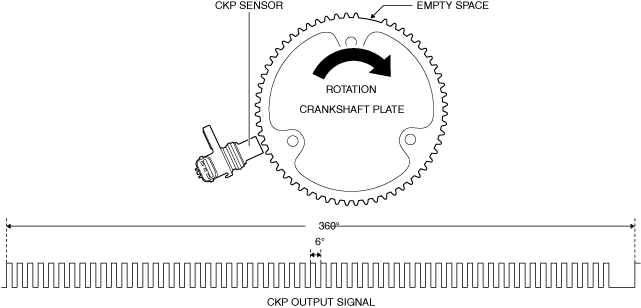

CKP sensor characteristic
