CONTROL SYSTEM LOCATION INDEX [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

id0140u3804100

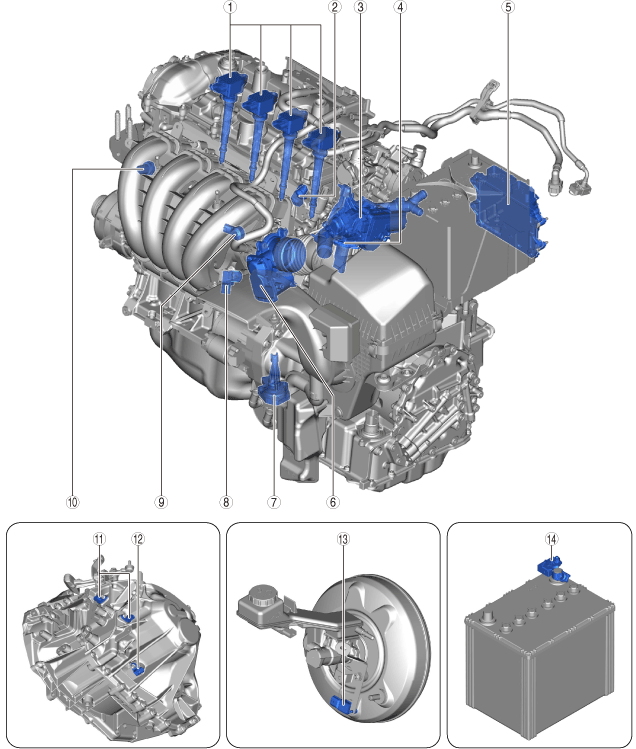

Engine Compartment

am3zzw00030979

1	Ion sensor (See ION SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See ION SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
2	Intake CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
3	Coolant control valve position sensor (See COOLANT CONTROL VALVE POSITION SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See COOLANT CONTROL VALVE POSITION SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
4	MAF sensor/IAT sensor No.1 (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.1 REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See MASS AIR FLOW (MAF) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
5	PCM (BARO sensor) (See PCM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See PCM INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
6	TP sensor (See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See THROTTLE POSITION (TP) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
7	Engine oil level sensor (See .)ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))] (See ENGINE OIL LEVEL SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
8	MAP sensor/IAT sensor No.2 (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
9	KS (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See KNOCK SENSOR (KS) INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
10	Fuel pressure sensor (See FUEL PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See FUEL PRESSURE SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
11	Neutral sensor (See NEUTRAL SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
12	Revolution sensor (See REVOLUTION SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
13	Power brake unit vacuum sensor (See POWER BRAKE UNIT VACUUM SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
14	Current sensor (See CURRENT SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See CURRENT SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)

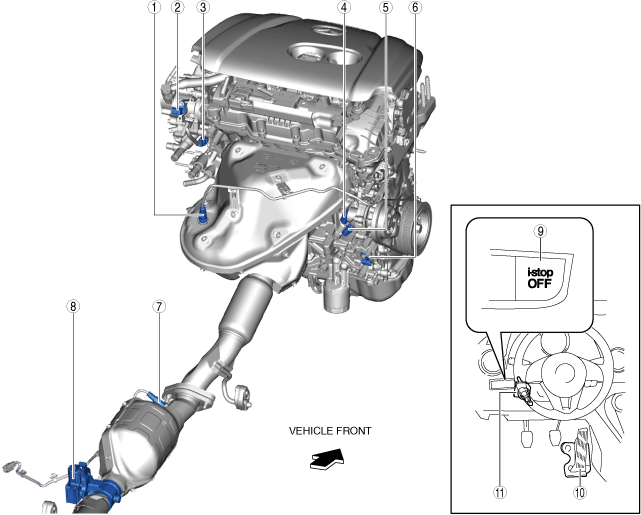

Except Engine Compartment

am3zzw00030627

1	A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See AIR FUEL RATIO (A/F) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
2	Exhaust CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
3	ECT sensor No.2 (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
4	Engine oil temperature sensor/Engine oil pressure sensor (See ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See ENGINE OIL PRESSURE SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See ENGINE OIL TEMPERATURE SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
5	ECT sensor No.1 (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
6	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
7	HO2S (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See HEATED OXYGEN SENSOR (HO2S) INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
8	Exhaust shutter valve position sensor (See EXHAUST SHUTTER VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See EXHAUST SHUTTER VALVE POSITION SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
9	i-stop OFF switch (See i-stop OFF SWITCH REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See i-stop OFF SWITCH INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
10	Clutch stroke sensor (MTX) (See CLUTCH STROKE SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
11	APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].) (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
