FRONT SUSPENSION


id021300101000


Outline

•  A strut type front suspension has been adopted.

Structural view

am3zzn00010413

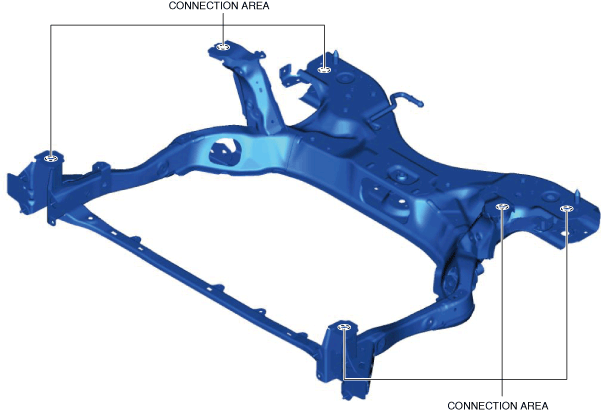

•  The connection area of the front crossmember and body is a 6-point rigid mount type.
am3zzn00009984

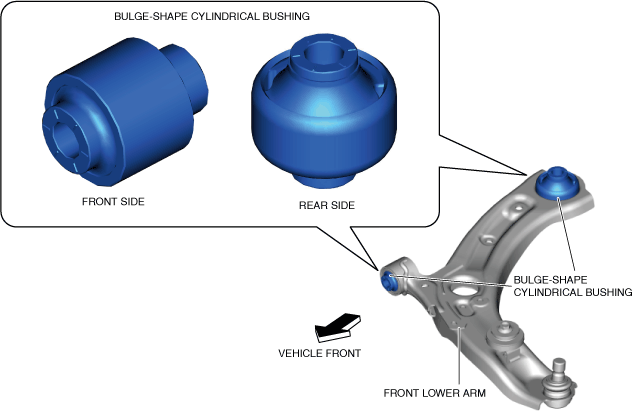

•  A bulge-shape cylindrical bushing has been adopted to the front lower arm bushing for improved, smooth suspension operation.
am3zzn00009985

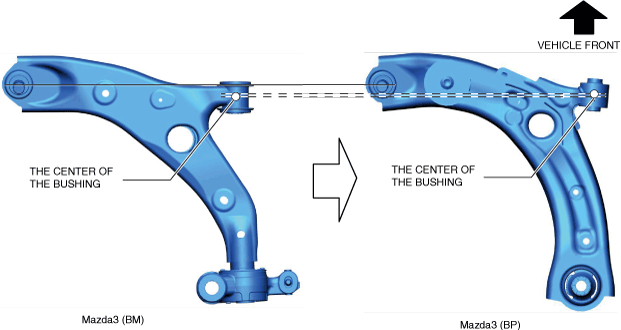

•  The position of the front lower arm bushing on the front side of the vehicle is located farther forward compared to the previous vehicle. Due to this, lateral force input from the tires is received directly.
am3zzn00009986
