REAR DRIVE SHAFT INSPECTION

id031300144900

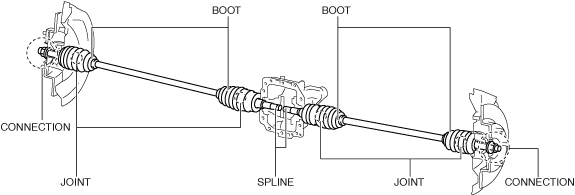

1.  Inspect the connections for any looseness.

ac30zw00001973

•  If there is any malfunction, replace the applicable part. (See REAR DRIVE SHAFT REMOVAL/INSTALLATION [(E)].)

2.  Inspect the boot for damage and cracks.

•  If there is any malfunction, replace the applicable part. (See REAR DRIVE SHAFT DISASSEMBLY/ASSEMBLY.)

3.  Move the spline and joint up and down, left and right by hand and verify that there is no excessive play.

•  If there is any malfunction, replace the applicable part. (See REAR DRIVE SHAFT DISASSEMBLY/ASSEMBLY.)
