REAR DIFFERENTIAL MOUNT RUBBER REMOVAL/INSTALLATION
id031400803000
Rear Differential Mount Rubber (Front)
1. Support the rear differential component using a jack.
am3zzw00031463
|
2. Remove in the order shown in the figure.
3. Install in the reverse order of removal.

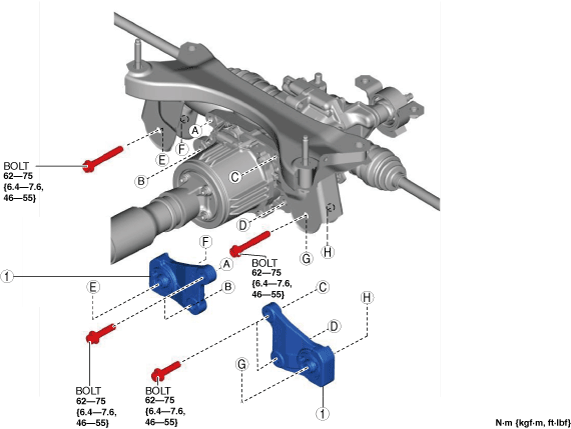

am3zzw00031464
|
|
1
|
Rear differential mount rubber (front)
|
Rear Differential Mount Rubber (Front) Installation Note
1. Temporarily tighten bolts A and B.
am3zzw00031465
|
2. Remove the transmission jack.
3. Shake the rear differential forward and back/left and right to improve the installation fit of the rear differential.
4. Completely tighten bolts in the order of A and B.
Rear Differential Mount Rubber (Rear)
1. Support the rear differential component using a transmission jack.
am3zzw00031463
|
2. Remove in the order shown in the figure.
3. Install in the reverse order of removal.

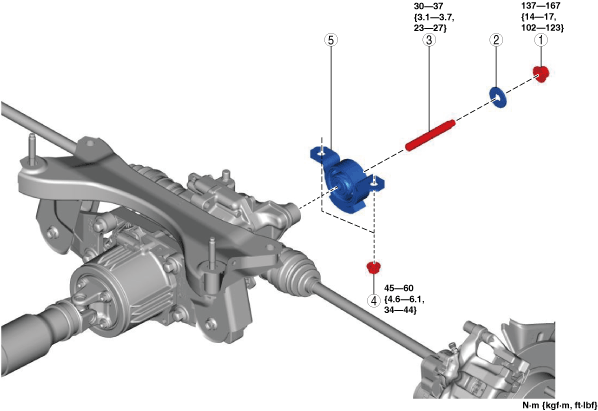

am3zzw00031466
|
|
1
|
Nut
|
|
2
|
Washer
|
|
3
|
Stud bolt
|
|
4
|
Rear differential mount rubber (rear) installation nut
|
|
5
|
Rear differential mount rubber (rear)
|
Stud Bolt, Washer, And Nut Installation Note
1. Temporarily tighten the stud bolt, washer and nut.
2. Remove the transmission jack.
3. Shake the rear differential forward and back/left and right to improve the installation fit of the rear differential.
4. Tighten the stud bolt and nut completely.
